>> C << Front Bracket Assembly Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

After installing the rotor, remove the wire used to secure the brush.

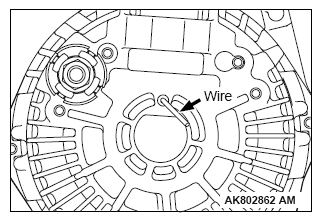

Fig 1: Locating Regulator Assembly Wire
G09664722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
