<< A >> ASC-Ecu Harness Connector Disconnection

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Operate the lock lever to disconnect the ASC-ECU harness connector as shown in the figure.

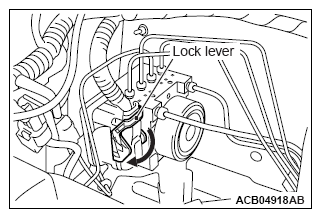

Fig 1: Disconnecting ASC-ECU Harness Connector
G09666011
