<< C >> Differential Mount Bracket Mounting Bolt/Fuel Tank Band/Fuel Tank Assembly Removal
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel tank assembly, continuously checking that it does not make contact with the differential carrier assembly.

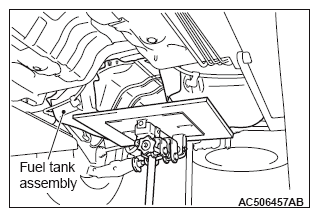

- Support the fuel tank assembly on a transmission jack, and then remove the fuel tank band securing bolts and the fuel tank assembly connecting nuts.
- Remove the fuel tank assembly while holding its tilted position and taking care not to strike it with the differential carrier.
