2.4L Engine

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

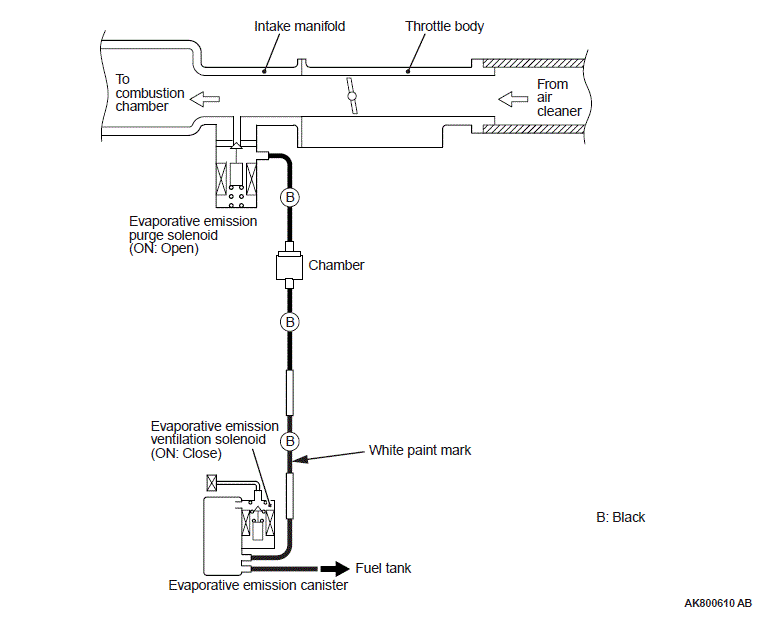

Fig 1: Evaporative Emision System Vacuum Circuit Routing Diagram (2.4L Engine)
G09664831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
