Evaporative Emission Ventilation Solenoid Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect a hand vacuum pump to nipple (A) of the evaporative emission canister and evaporative emission ventilation solenoid assembly.
  2. Connect a plug to nipple (B) of the evaporative emission canister and evaporative emission ventilation solenoid assembly.
  3. Check air tightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

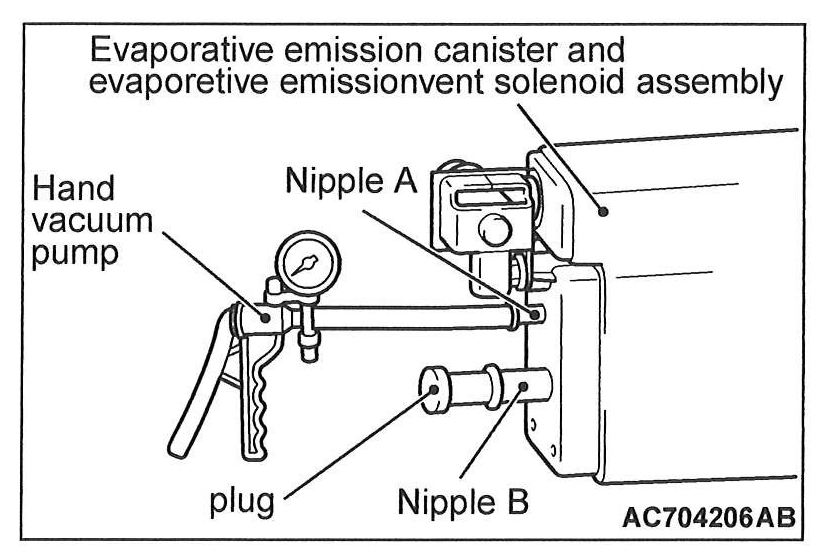

    Fig 1: Connecting Hand Vacuum Pump To Nipple Of Evaporative Emission Canister And Evaporative Emission Ventilation Solenoid Assembly
    G00539959Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

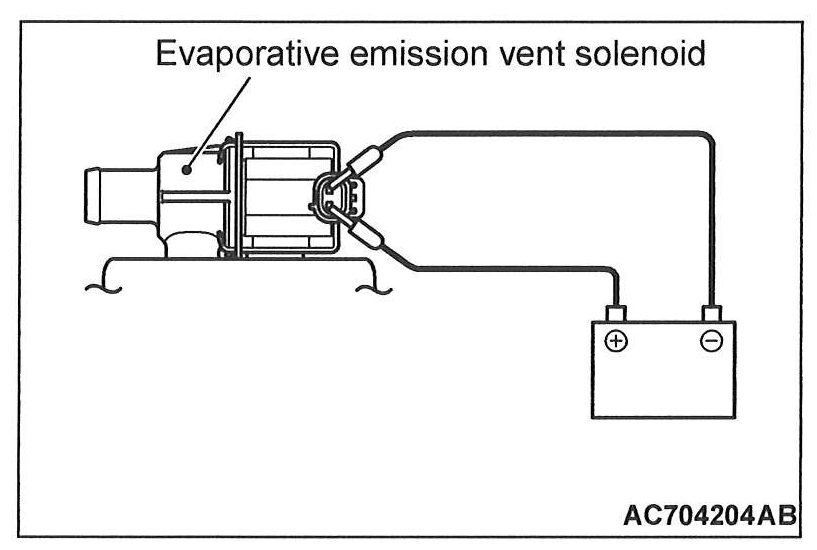

    Fig 2: Connecting Battery To Evaporative Emission Vent Solenoid
    G00539960Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

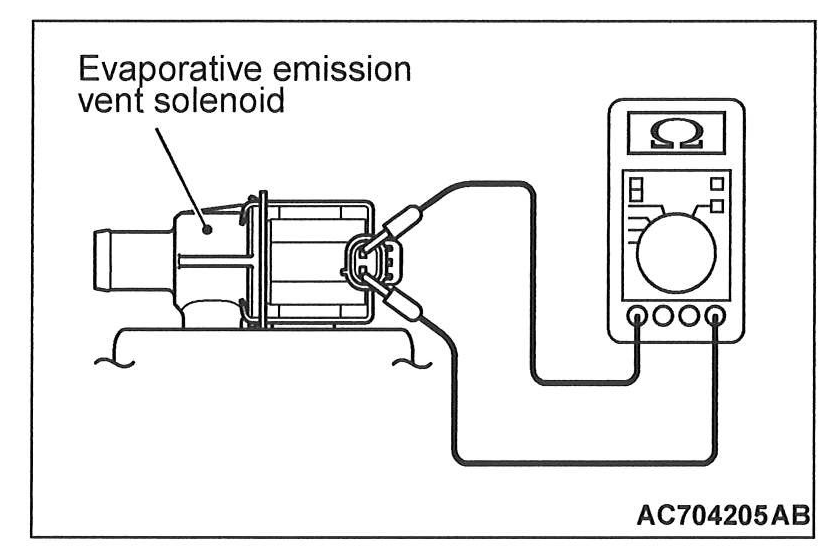

    Fig 3: Measuring Resistance Between Terminals Of Solenoid
    G00539961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Battery voltage Normal condition
    Applied Vacuum maintained
    Not applied Vacuum leaks
  4. Measure the resistance between the terminals of the solenoid.

    Standard value: 17 - 21 [at 20°C (68°F)]
