Checking the Coil Resistance
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the EGR valve.

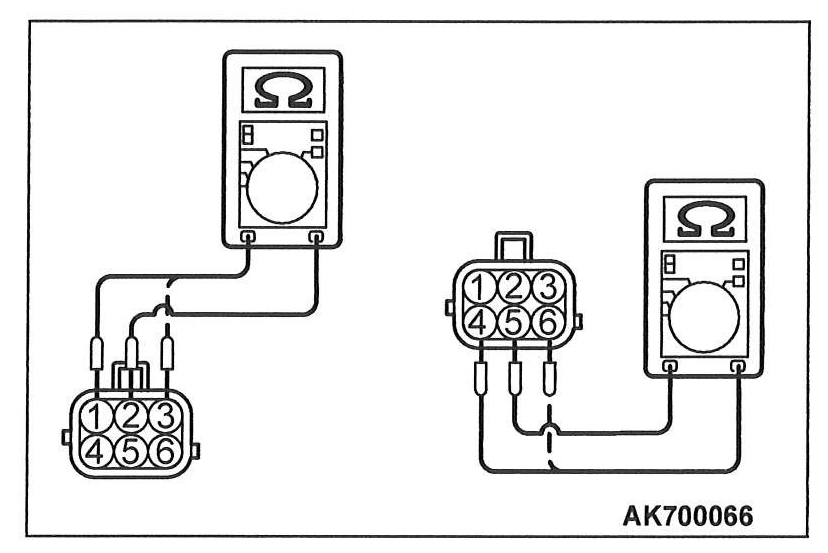

- Measure the resistance between terminal No. 2 and either terminal No. 1 or terminal No. 3 of the connector at the EGR valve.
Standard value: 20 - 24 [at 20°C (68°F)]
- If the resistance is not within the standard, replace the EGR valve.
- Measure the resistance between terminal No. 5 and either terminal No. 6 or terminal No. 4 of the connector at the EGR valve.
Standard value: 20 - 24 [at 20°C (68°F)]
- If the resistance is not within the standard, replace the EGR valve.
