<< C >> V.V.T. Sprocket Bolt/V.V.T. Sprocket Assembly Removal
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

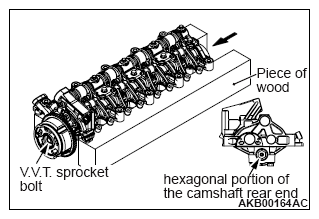

- As shown in the illustration, mount the rocker arm and camshaft assembly on the piece of wood.
- Holding the hexagonal portion of the camshaft rear end, remove the V.V.T. sprocket bolt.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
