<< C >> Oil Pan Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil pan tightening bolts.
    CAUTION: Lightly tap the oil pan FIPG cutter to drive in, taking care not to damage the ladder frame and oil pan sealed area.
  2. Lightly tap special tool Oil pan FIPG cutter (MD998727) to drive in the illustrated groove of the oil pan and ladder frame.

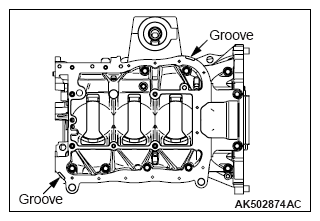

    Fig 1: Identifying Oil Pan Bolts And Groove
    G09663486Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Lightly tap and slide special tool Oil pan FIPG cutter (MD998727) to remove the oil pan.
    Fig 2: Identifying Oil Pan FIPG Cutter (MD998727)
    G09663487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
