>> B << Engine Coolant Temperature Sensor Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Apply the specified sealant to the engine coolant temperature sensor thread.
Specified sealant: ThreeBond 1324N or equivalent

NOTE: Install the engine coolant temperature sensor immediately after applying sealant.

Fig 1: Locating Engine Coolant Temperature Sensor Sealant Applying Area

CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the engine oil or water to the sealant application area or start the engine.
Use special tool water temp sensor wrench (MB992042) to tighten the engine coolant temperature sensor to the specified torque.
Tightening torque: 30 ± 9 N.m (22 ± 6 ft-lb)

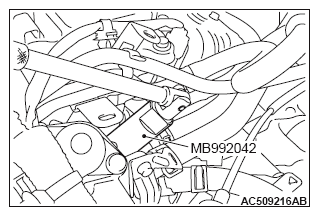

Fig 2: Water Temp Sensor Wrench
