<< C >> Front/Rear Door Trim Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Using a flat-tipped screwdriver as shown in the figure, remove the inside lock cable and the inside handle cable, then remove the door trim.

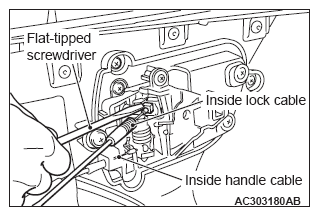

Fig 1: Removing Lock & Handle Cable
G09666430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
