Section 48 (Interior)
>>
Trims
>>
Door Trim
>>
Removal And Installation
Removal And Installation
WARNING:
This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

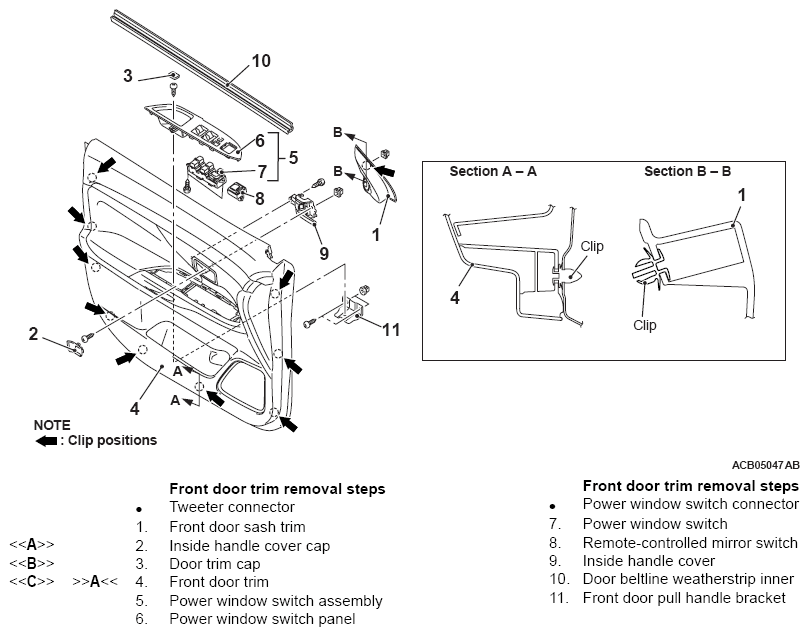

Fig 1: Removing/Installing Front Door Trim
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

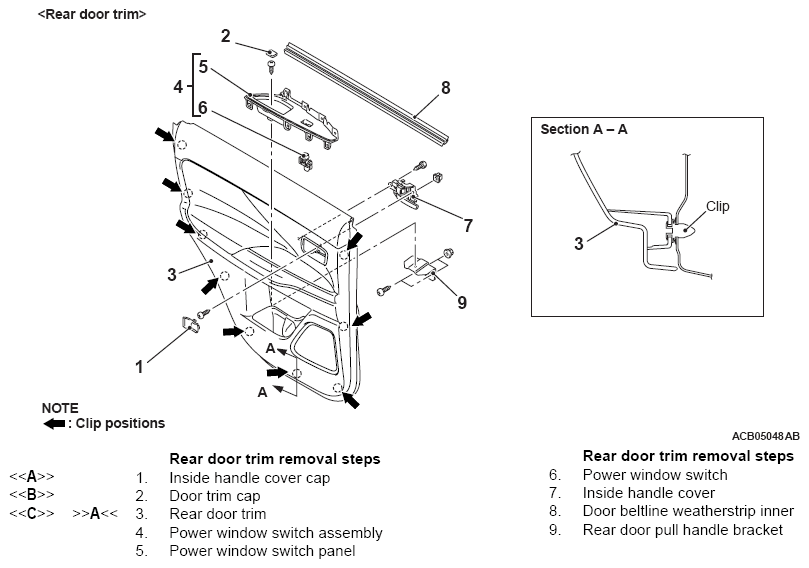

Fig 2: Removing/Installing Rear Door Trim
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
