7-Persons Seat

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

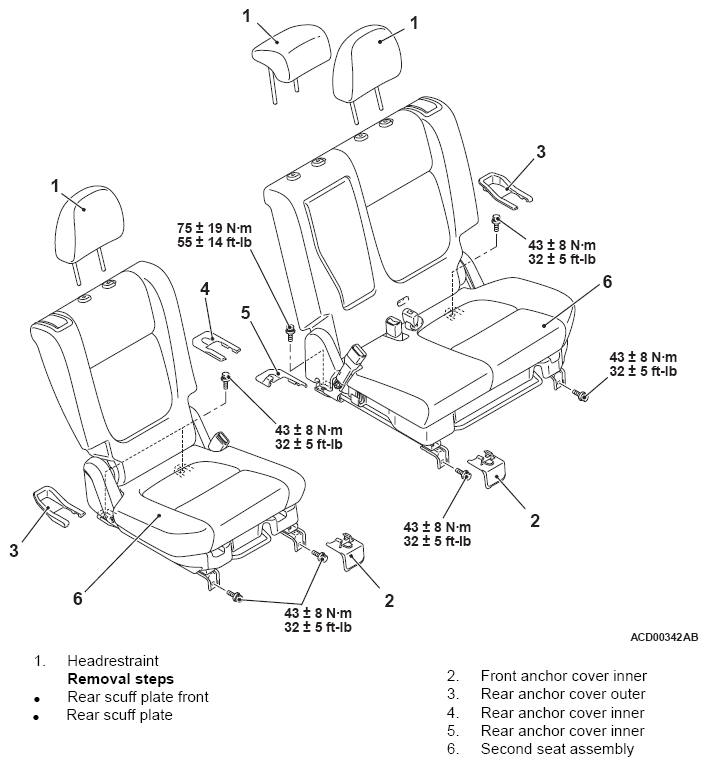

Fig 1: Removing/Installing Second Seat Assembly With Torque Specification (7-Persons Seat)
G09666453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
