<< A >> V. V. T. Sprocket, Rocker Arm And Camshaft Assembly Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the engine oil pan which was removed at the timing chain removal.
    CAUTION: When supporting the engine and transaxle assembly with a garage jack, be careful not to deform the engine oil pan.
  2. Place a garage jack against the engine oil pan with a piece of wood in between to support the engine and transaxle assembly.
  3. Remove the following special tools for holding the engine assembly, which have been attached when the timing chain case assembly was removed.
    • Engine hanger (MB991928 or MB991895)
    • Hanger (MB991527)
  4. Remove the V. V. T. sprocket, rocker arm and camshaft assembly (Refer to >> A << ROCKER COVER ASSEMBLY INSTALLATION  ).

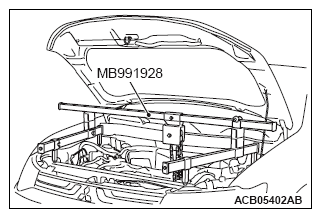

    Fig 1: Identifying Engine Assembly And Special Tool (MB991928)
    G09663356

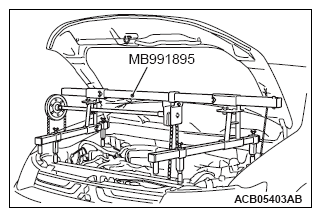

    Fig 2: Identifying Engine Assembly And Special Tool (MB991895)
    G09663357

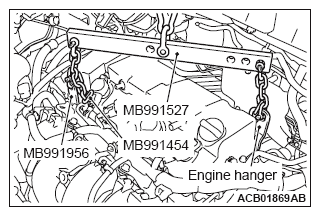

    Fig 3: Identifying Engine Assembly And Special Tools
    G09663358
