<< B >> Crankshaft Pulley Center Bolt/Crankshaft Pulley Washer/Crankshaft Pulley Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Insert the special tool pins deep into the position shown in the figure to hold the special tool without interfering with the protrusion of the timing chain case.

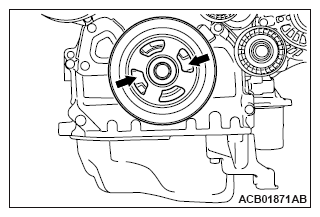

Fig 1: Locating Timing Chain Case Protrusion

Hold the crankshaft pulley with special tools MB990767 and MD998719.
Loosen the crankshaft pulley center bolt and remove the crankshaft pulley center bolt, crankshaft pulley washer and crankshaft pulley.

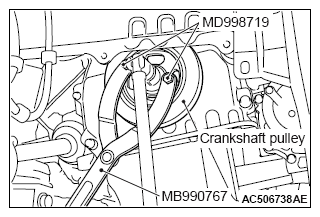

Fig 2: Identifying Crankshaft Pulley And Special Tools MB990767 And MD998719
