<< A >> Drive Belt Removal
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
To introduce the serpentine drive system with the auto-tensioner, the following operations will be required.
WARNING:
Be sure to set the tool to the hexagonal part securely to prevent the tool from falling off because the tension of the auto-tensioner is high.

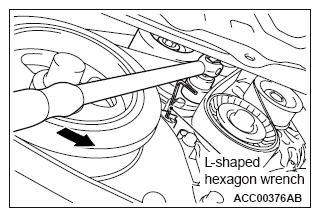

- Securely set the tool to the hexagonal part of the auto-tensioner.
- Rotate the auto-tensioner counterclockwise.
- Insert the L-shaped hexagon wrench into the auto-tensioner hole to fix the auto-tensioner.CAUTION: To reuse the drive belt, draw an arrow indicating the rotating direction on the back of the belt using chalk to install the same direction.
- Remove the drive belt.
