Passenger's Air Bag Off Indicator Lamp Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

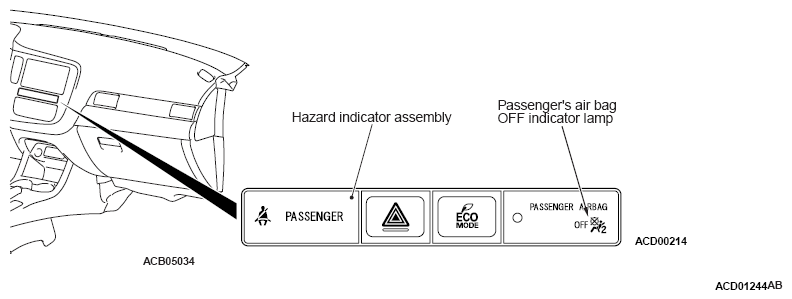

Fig 1: Identifying Passenger Air Bag OFF Indicator Lamp And Hazard Indicator Assembly
G09666482Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Check that the "PASSENGER AIR BAG OFF" indicator light illuminates when the ignition switch is turned ON.
  2. Check that the light is extinguished after the approximately 6 to 8 seconds illumination. Check that the warning light is extinguished afterward.
  3. Except the above, the SRS system is abnormal. Thus, check the diagnostic trouble code (Refer to CHECK CHART FOR DIAGNOSTIC TROUBLE CODES  ).
