<< C >> Driver's Air Bag Module Connector Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the flat-tipped screwdriver to pull out the locking button of wiring harness side connector, and release the lock.

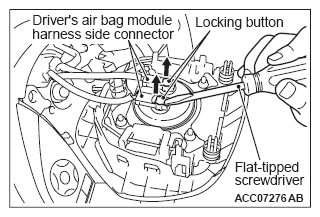

    Fig 1: Removing Locking Button
    G09666764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
