If Inspecting With The Connector Connected Waterproof Connectors

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Be sure to use special tool. Never insert a test probe from the harness side, as this will reduce the waterproof performance and result in corrosion.

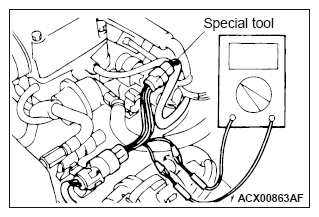

Fig 1: Inspecting Waterproof Connector
G09663136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
