At Starting (P → D Range, N → D Range)

WARNING: This page is about a different variant/trim than selected.

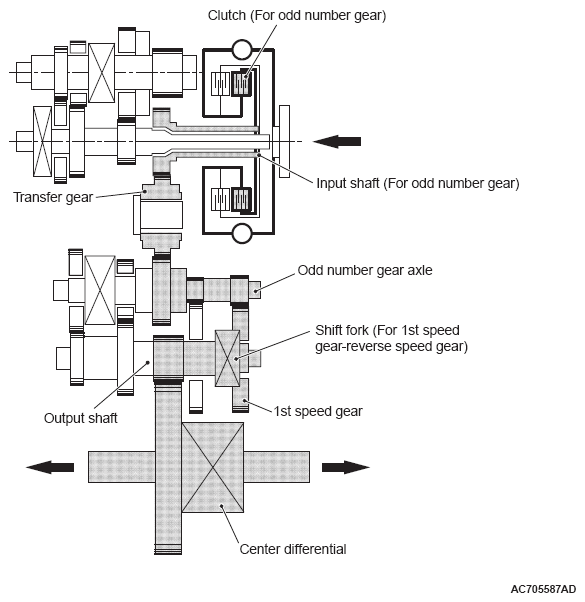

Fig 1: Shift Mechanism Operation Diagram (P → D RANGE, N → D RANGE)
G07031572Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Corresponding to the operations from P to D and from N to D, the clutch for the odd number gears is engaged to perform the 1st gear starting.
