Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.

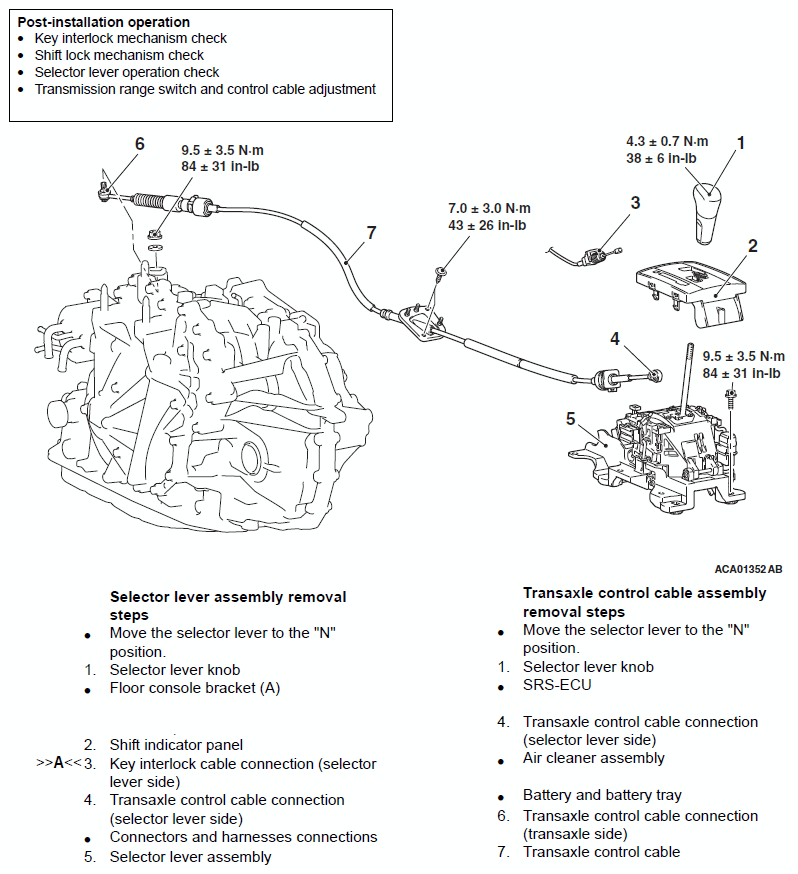

Fig 1: Removing/Installing Transaxle Control Components With Torque Specification
G09626183Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
