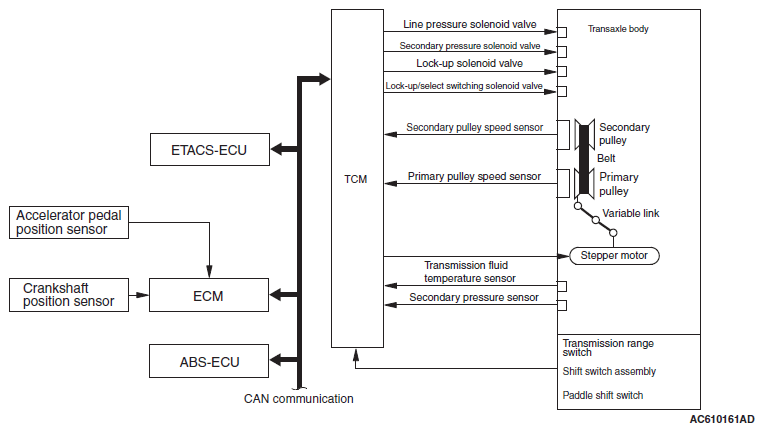

Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transaxle (CVT) Diagnosis & On-Vehicle Service - With Diagnostics - Lancer >> General Information >> Electronically-Controlled System >> System Construction Diagram
