< L Range (Vehicles Without Sport Mode) >

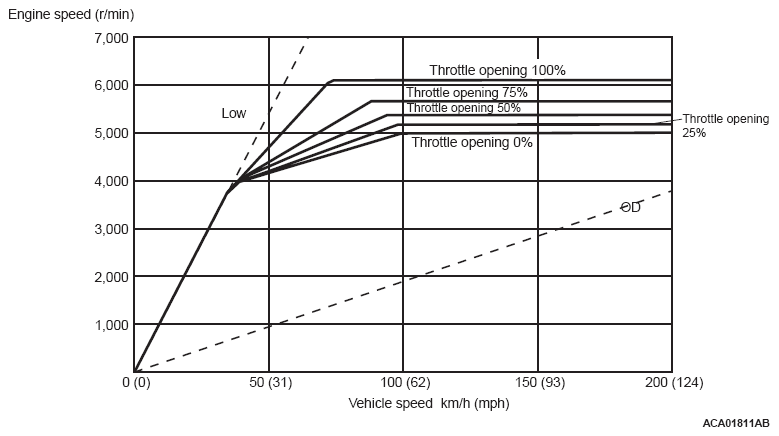

Fig 1: Engine Versus Vehicle Speed Graph L Range (Vehicles Without Sport Mode)
G08293032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By limiting the shift range to the area around the lowest pulley ratio, the powerful driving force and engine brake is secured.
