Continuously Variable Transaxle (CVT) Diagnosis & On-Vehicle Service - With Diagnostics - Lancer
>>
General Information
>>
Electronically-Controlled System
>>
Ratio Pattern
>>
< 2.0L Engine - D Range >
< 2.0L Engine - D Range >

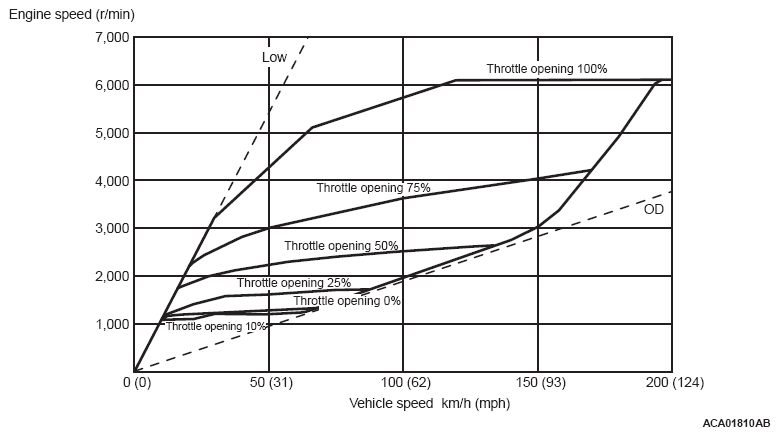

Fig 1: Engine Versus Vehicle Speed Graph (2.0L Engine - D Range)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
