Inspection Procedure 6: Cannot be Changed with the Paddle Shift. < Vehicles with sport mode >: Notes

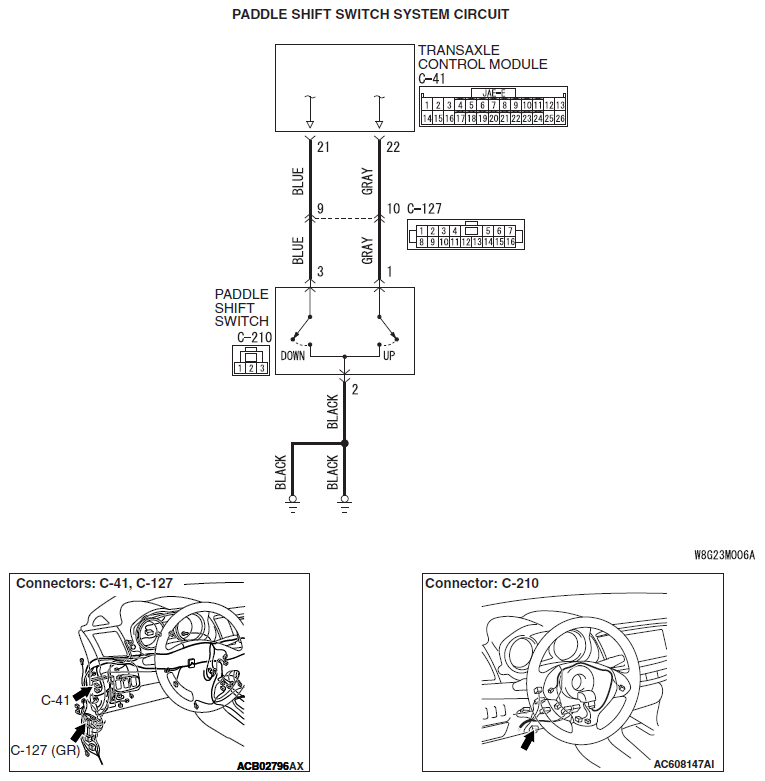

Fig 1: Paddle Shift Switch System Circuit Diagram

G09626118

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
