DTC P1777: Malfunction of Stepper Motor: Notes

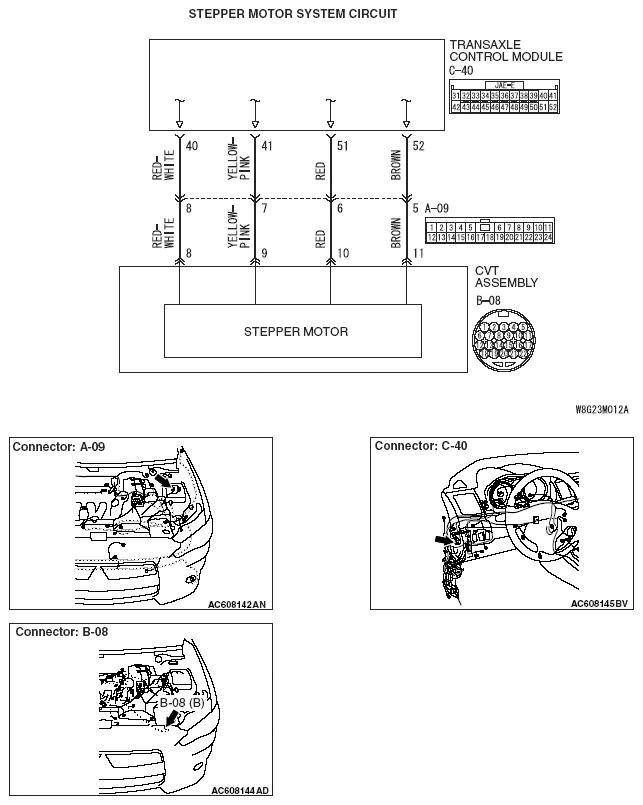

Fig 1: Stepper Motor System - Circuit Diagram

G05375780

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
