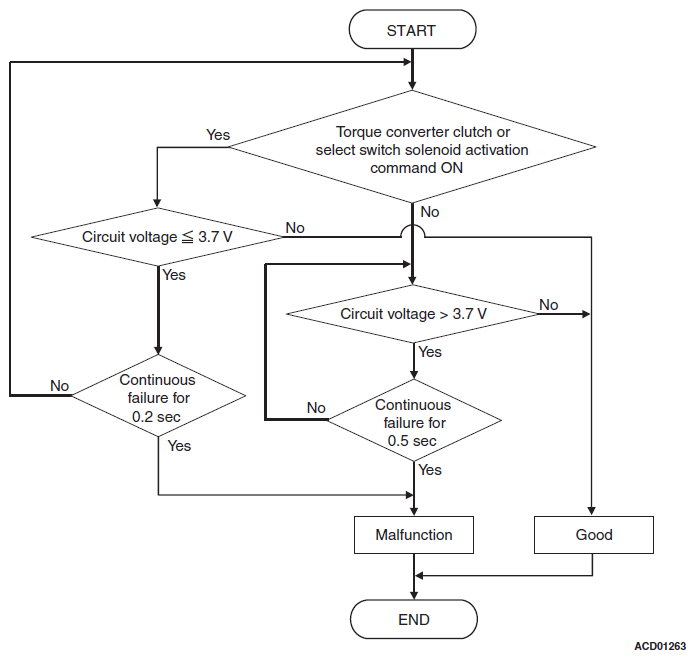

Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transaxle (CVT) Diagnosis & On-Vehicle Service - With Diagnostics - Lancer >> Diagnosis >> Diagnostic Trouble Code Procedures >> DTC P1740: Malfunction of Lockup/Select Switching Solenoid Valve >> LOGIC FLOW CHARTS (Monitor Sequence)
