LOGIC FLOW CHARTS (Monitor Sequence-Input Rationality-high)

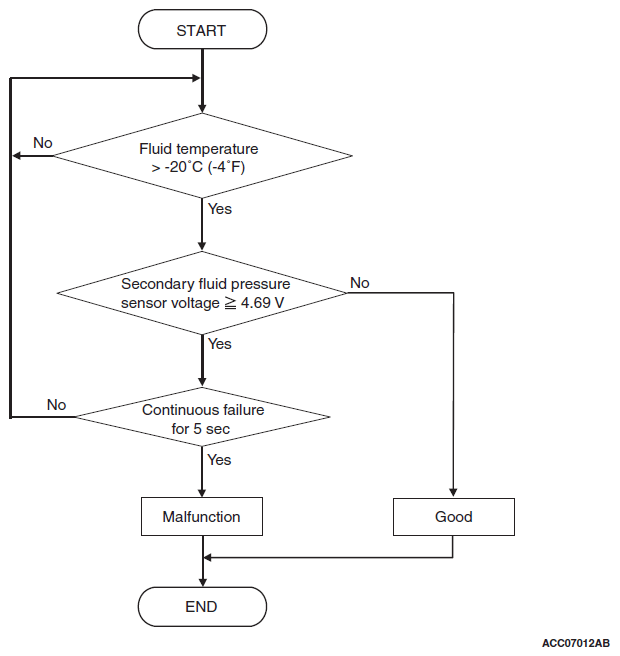

Fig 1: Logic Flow Charts (Monitor Sequence-Input Rationality-High)

G09626122

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
