Continuously Variable Transaxle (CVT) Diagnosis & On-Vehicle Service - With Diagnostics - Lancer
>>
Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC P0740: Malfunction of Lockup Solenoid Valve
>>
Notes
DTC P0740: Malfunction of Lockup Solenoid Valve: Notes

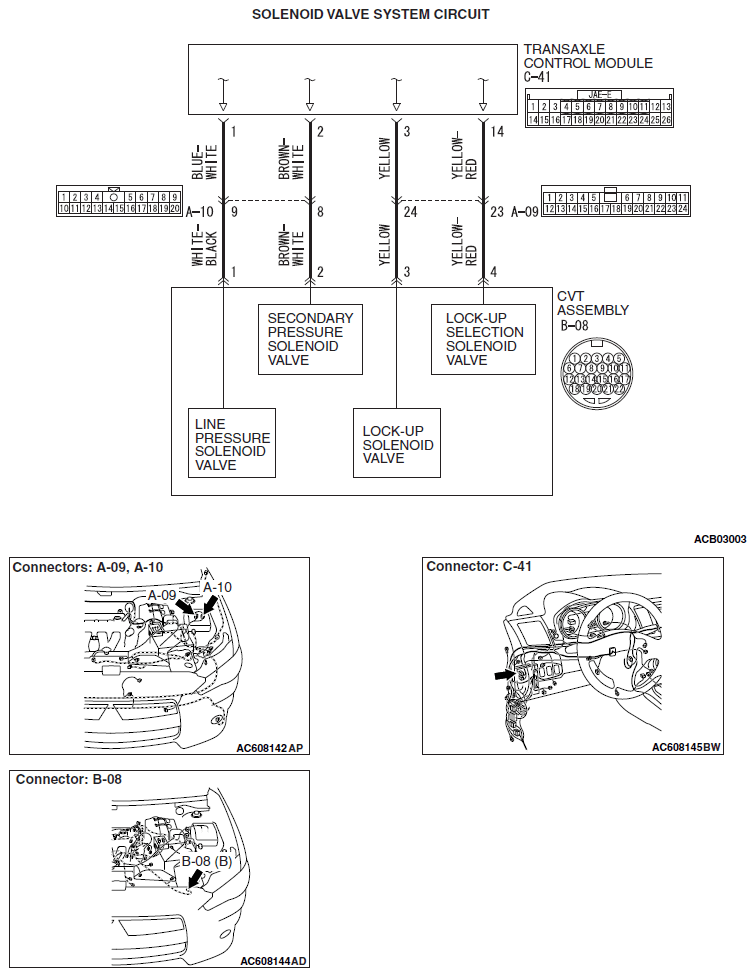

Fig 1: Solenoid Valve System - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
