DTC P0715: Malfunction of Primary Pulley Speed Sensor
>>
Notes
DTC P0715: Malfunction of Primary Pulley Speed Sensor: Notes

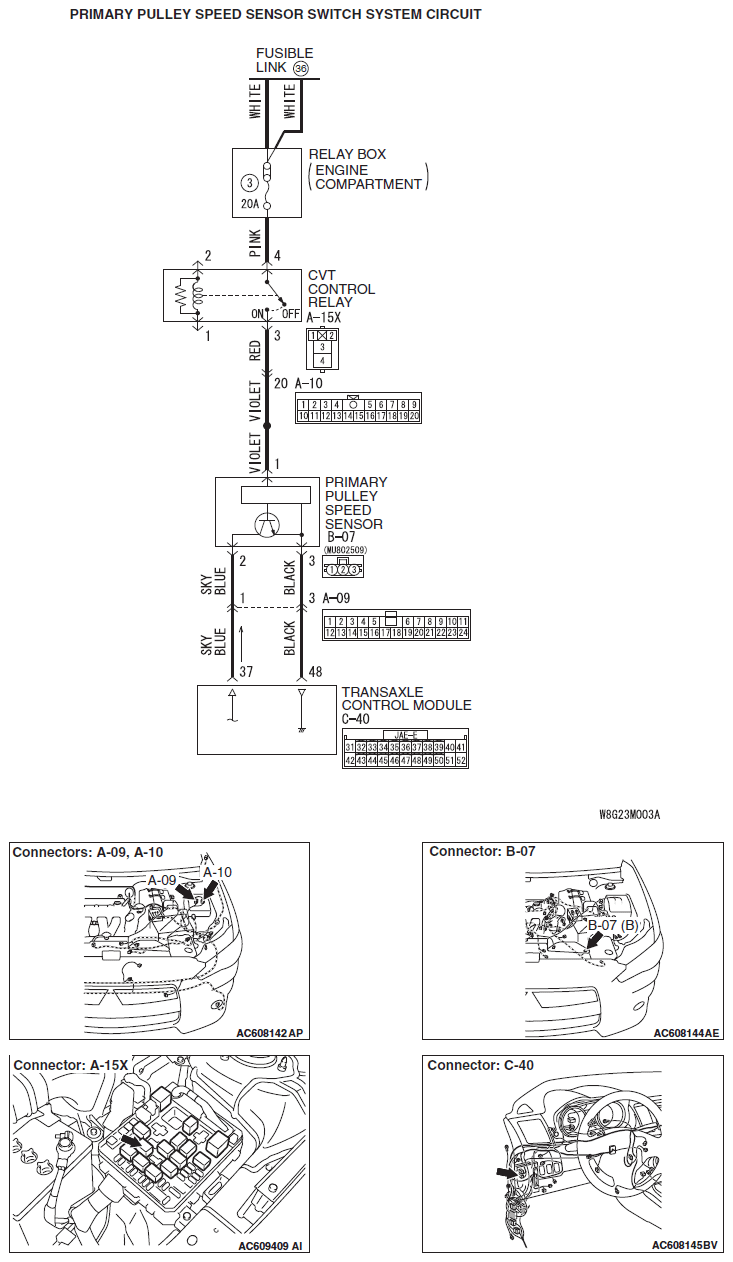

Fig 1: Primary Pulley Speed Sensor Switch System - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
