LOGIC FLOW CHARTS (Monitor Sequence-Input Rationality-Low (Open/Low revolution))

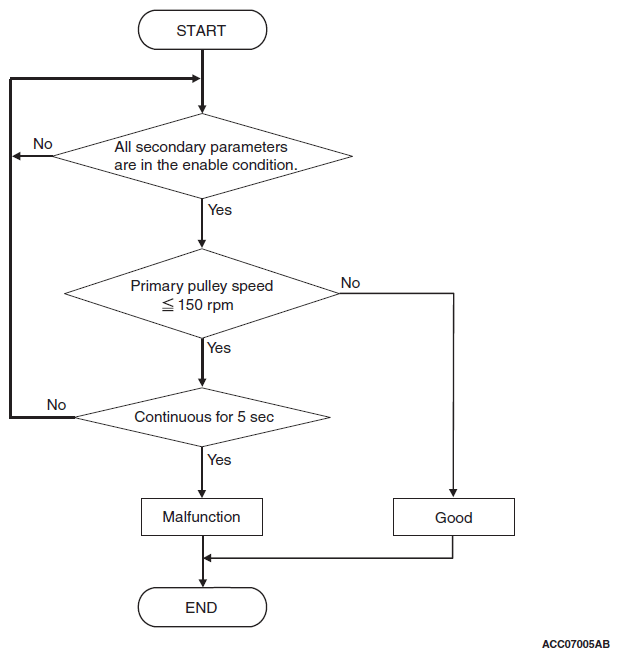

Fig 1: Logic Flow Charts (Monitor Sequence-Input Rationality-Low (Open/Low Revolution)
G09626101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
