LOGIC FLOW CHARTS (Monitor Sequence-Input Other Rationality)

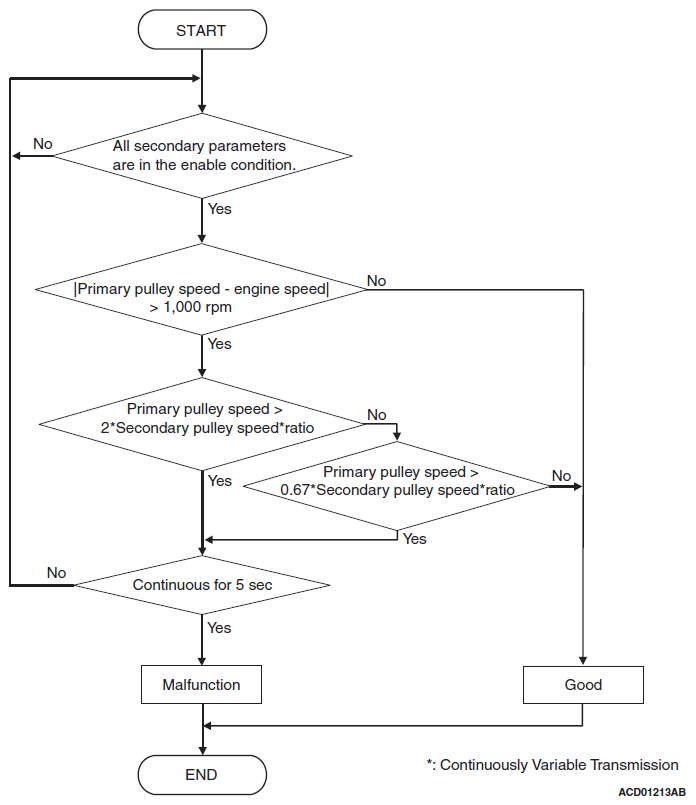

Fig 1: Logic Flow Charts (Monitor Sequence-Input Other Rationality)

G09626103

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
