Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable.

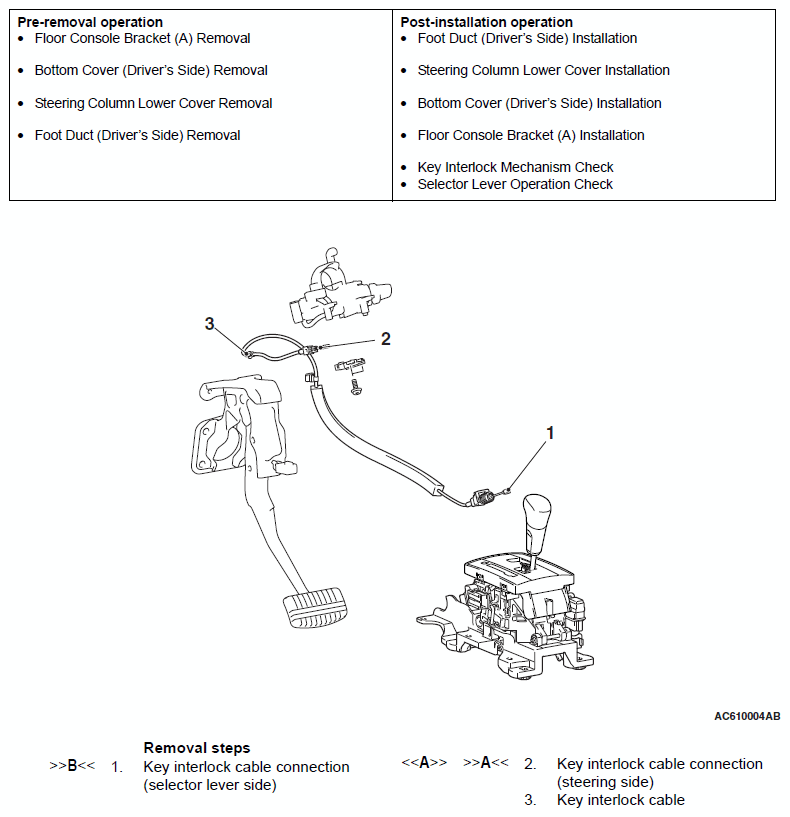

Fig 1: Identifying Key Interlock Cable Connection And Key Interlock Cable
G09626186Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
