Wheel Balancer Calibration Checking Flow Chart

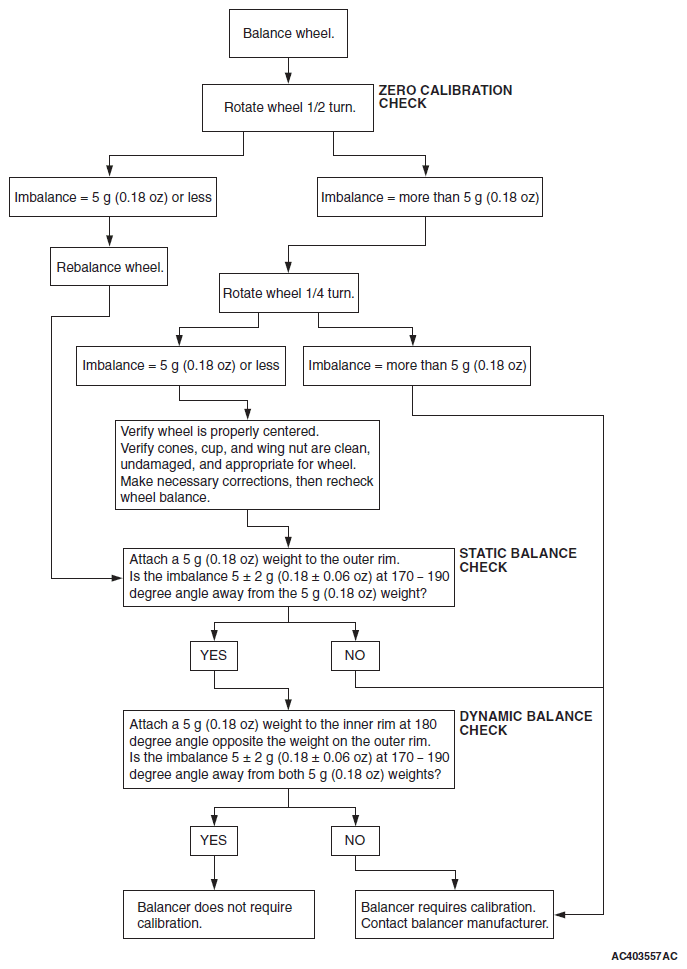

Fig 1: Wheel Balancer Calibration Flow Chart

G09626816

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
