<< A >> Rear Suspension CROSSMEMBER Removal

To avoid the break hose load, fix the trailing arm assembly with a rope as shown in the figure.

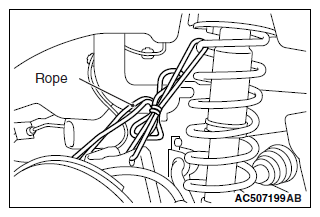

Fig 1: Removing Rear Suspension Crossmember
G09626958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
