Lower Arm Rear Bushing Replacement

Required Special Tools:

• MB992119: Arm bushing remover and installer
• MB990979: Ring
• MB990890: Rear suspension bushing base

Replace the back side bushing according to the following procedure.

Fig 1: Identifying Bushing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Use special tools MB992119, MB990979 and MB990890 to remove the bushing.
   Fig 2: Removing Bushing Using Special Tools MB992119, MB990979 And MB990890

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use special tools MB992119, MB990979 and MB990890 to press-fit the bushing.
3. Press-fit the bushing so that the bushing protrusion is in the direction shown in the figure.
4. Press-fit the bushing until the special tool contacts with the lower arm assembly.

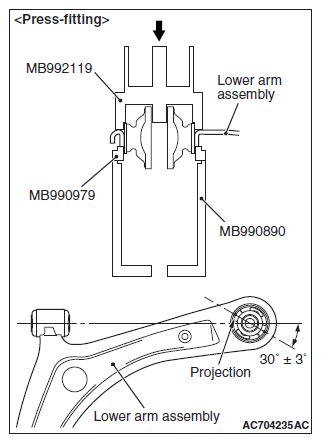

   Fig 3: Pressing/Fitting Bushing Using Special Tools MB992119, MB990979 And MB990890

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
