<< B >> Steering Shaft Cover Removal

  1. Remove the clip (for securing the floor carpet), and turn back the floor carpet.
  2. Remove the clip (for securing the steering shaft cover), and then remove the steering shaft cover.

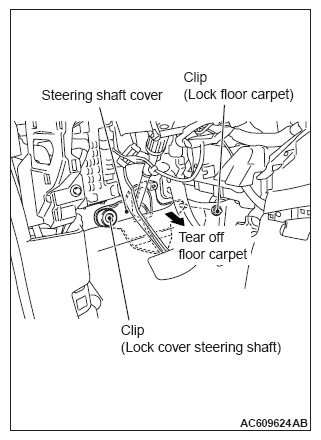

    Fig 1: Removing Steering Shaft Cover
    G07032700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
