DISASSEMBLY AND ASSEMBLY < 2.4L Engine >: Notes

CAUTION:
  • Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

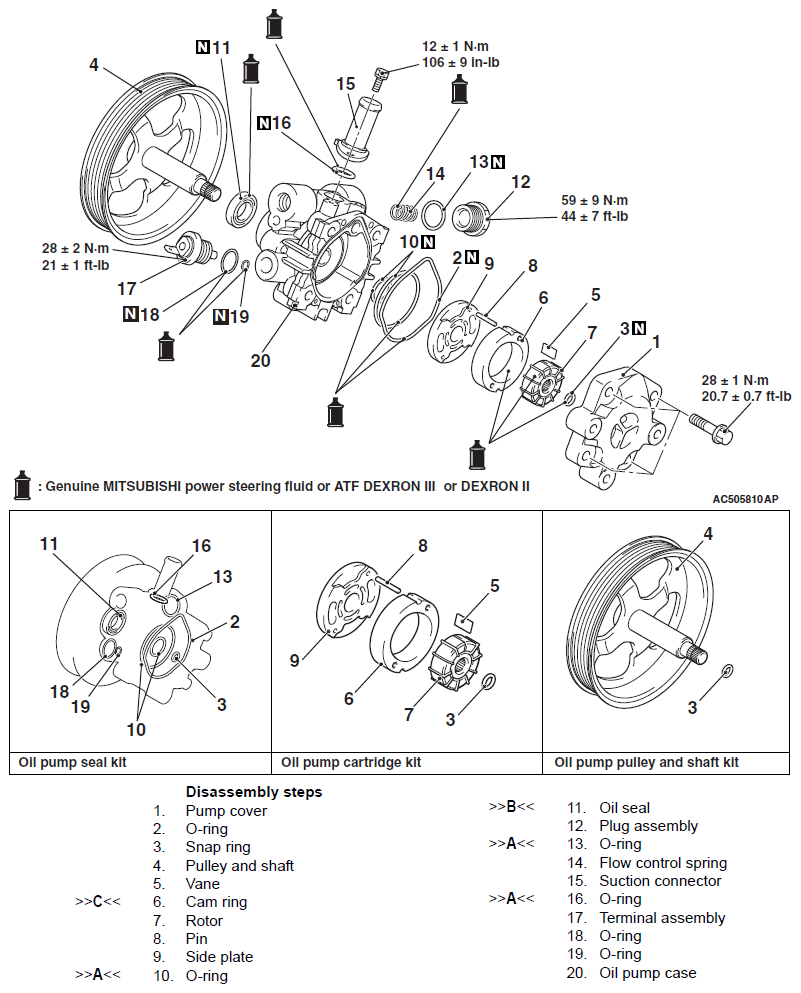

Fig 1: Disassembling/Assembling Power Steering Oil Pump Assembly With Torque Specifications
G09627393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
