<< B >> Front Axle CROSSMEMBER Removal

  1. Jack up and support the crossmember, and remove it.
  2. Check the hoses and harnesses for roughness, and then remove the front suspension crossmember with the rear roll stopper and the steering gear and linkage installed.

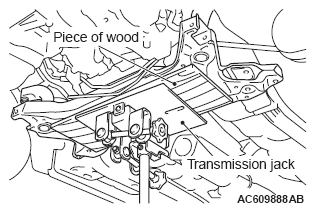

    Fig 1: Supporting Front Axle Crossmember Using Transmission Jack
    G07032710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
