Removal And Installation: Notes

CAUTION:

Before removing the steering wheel, driver's air bag module assembly and Knee Air Bag Module refer to SERVICE PRECAUTIONS , Driver's Air Bag Module and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < Except RALLIART > and KNEE AIR BAG MODULE < Vehicles with knee air bag >.
The bolts and nuts marked with * are coated with the friction coefficient stabilizer. When removing these parts, make sure that they are free of damage, remove any dust and dirt on the bearing surfaces and the threads, and tighten to the specified torque.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ) < Vehicles with ASC >.

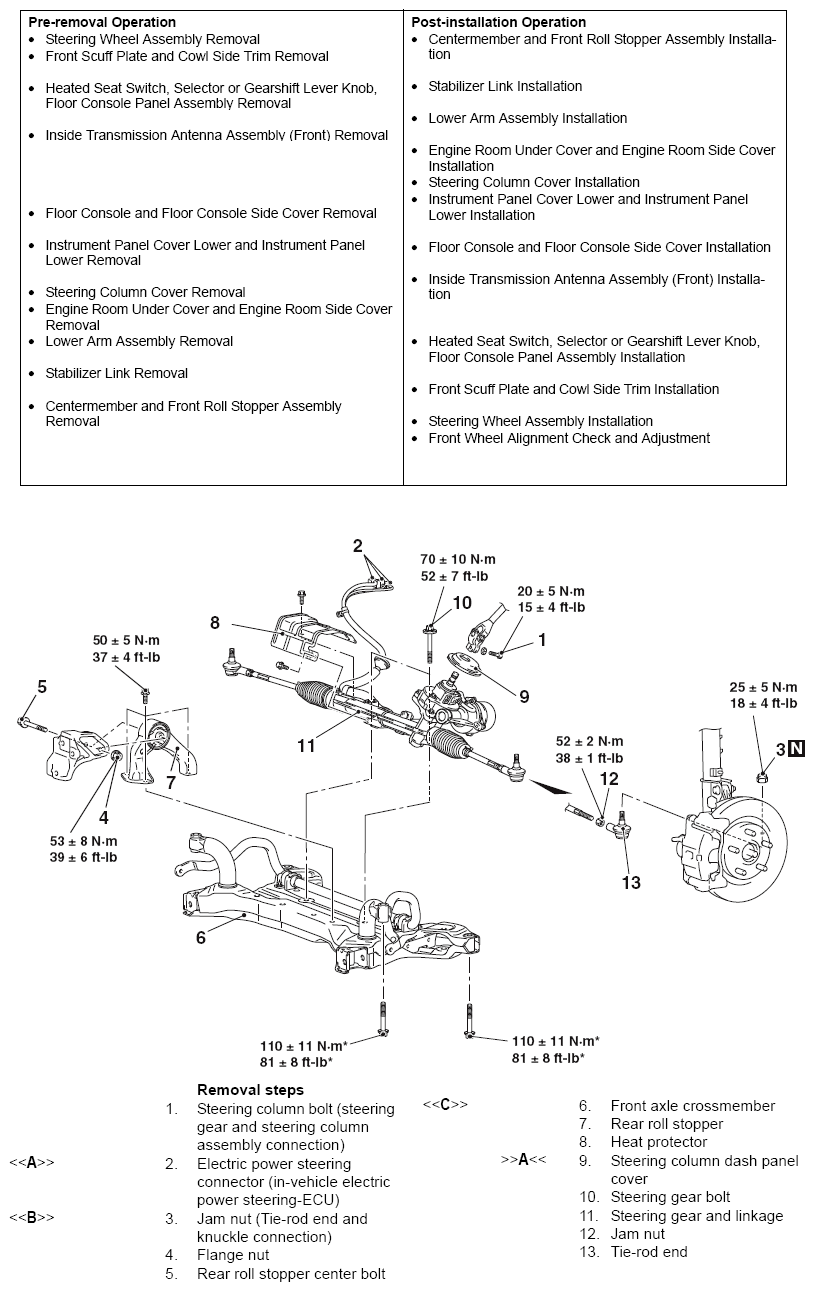

Fig 1: Removing/Installing Power Steering Gear Box And Linkage With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
