Disassembly And Assembly: Notes

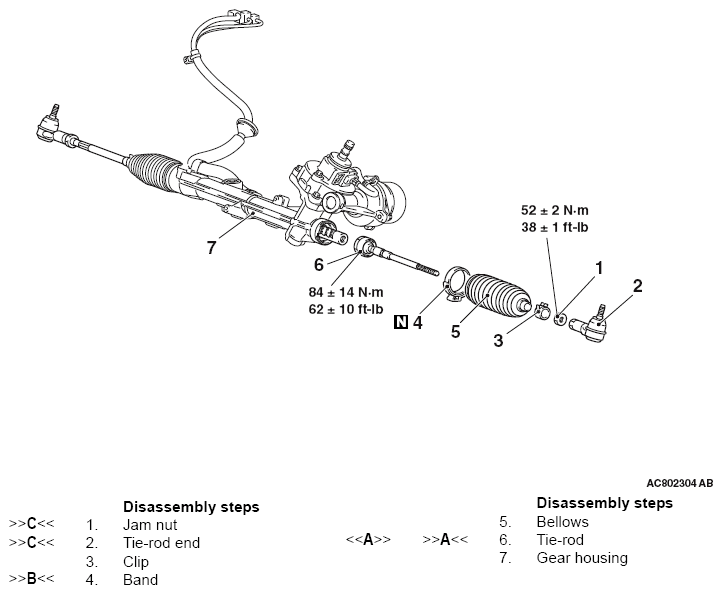

Fig 1: Power Steering Gear Box And Linkage With Torque Specification
G09627485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
