Lubrication And Sealing Points

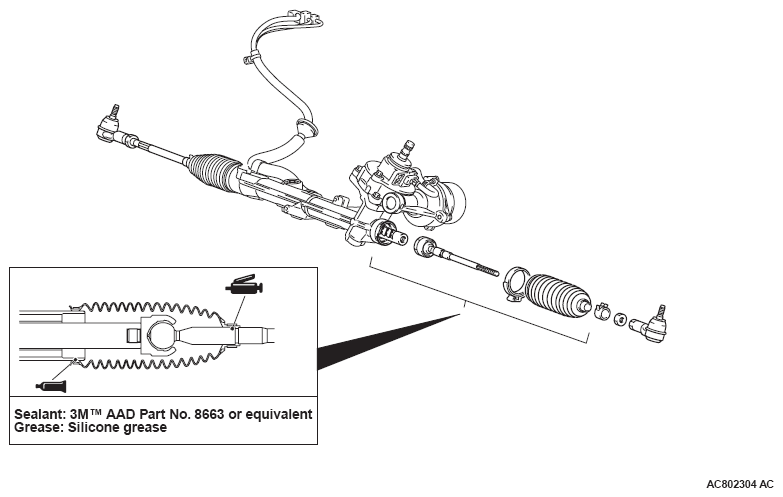

Fig 1: Identifying Lubrication And Sealing Points
G08294322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
