Inspection Procedure 1: Scan tool cannot communicate with electric power steering system < ECU power supply circuit system check >: Notes

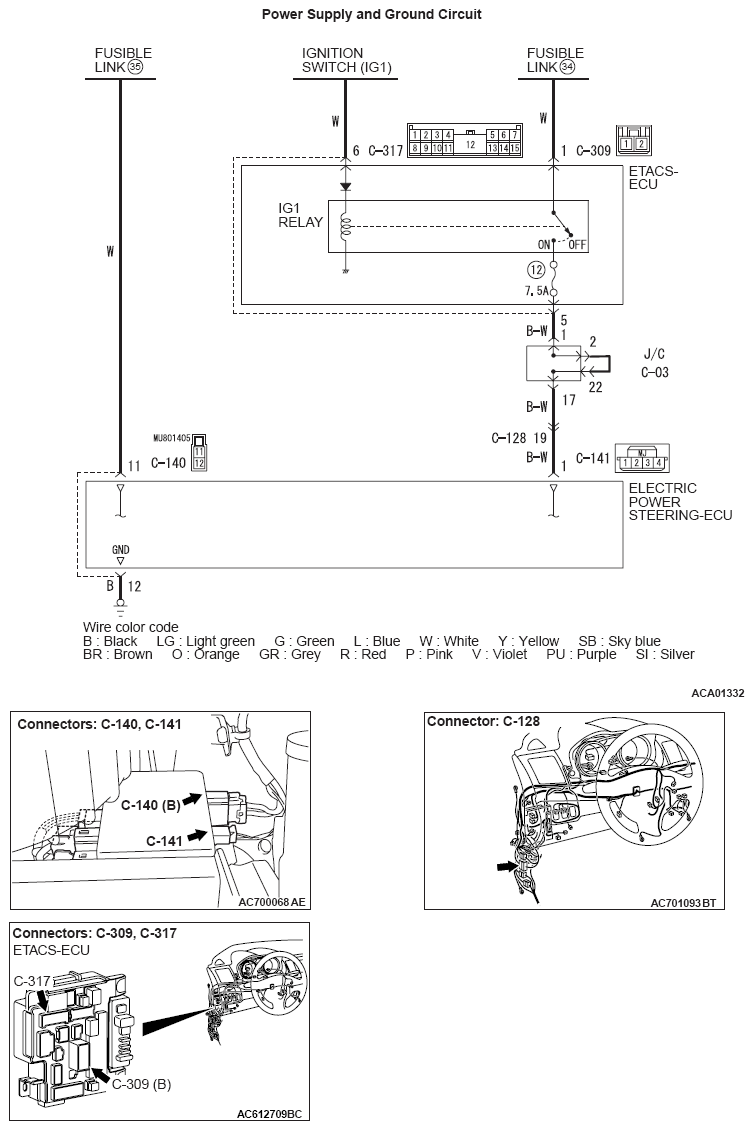

Fig 1: Power Supply And Ground Circuit Diagram
G07032760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
