Removal And Installation: Notes

WARNING:

Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.
Do not drop or subject the side impact sensor to impact or vibration. Replace the side impact sensor, if dents, cracking, deformation, or rust are present.
Replace the side impact sensor after the side and curtain air bag has deployed.

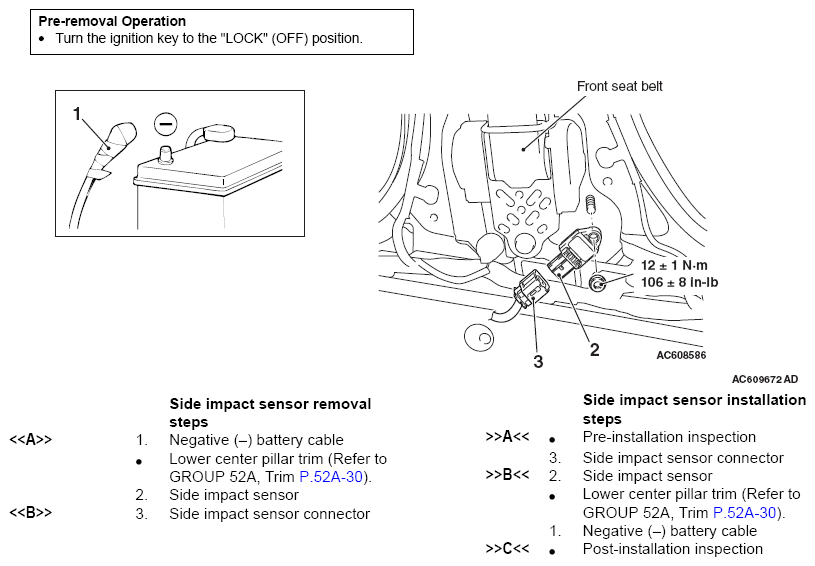

Fig 1: Removing/Installing Side Impact Sensor Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The illustration above shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
