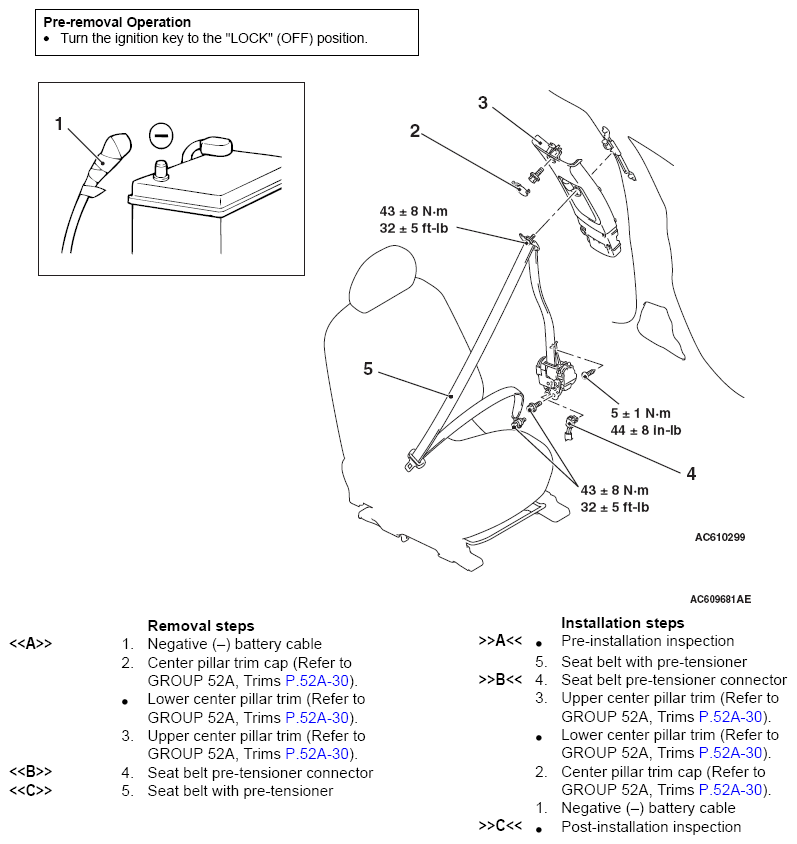

Removal And Installation: Notes
WARNING:
- Never attempt to disassemble or repair the seat belt pre-tensioner. If faulty, replace it.
- Be extremely careful when handling the seat with pre-tensioner. Do not subject it to shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil. Always replace it with a new part if any dents, cracks or deformation is found.
- Do not place anything on the seat belt pre-tensioner.
- Do not expose the seat belt pre-tensioner to temperatures over 90 °C (194 °F).
- After operating the seat belt pre-tensioner, replace the seat belt pre-tensioner with a new part.
- Gloves and protective goggles must be worn when handling a seat belt pre-tensioner once it has been used.
- Certain components of this vehicle, such as air bag modules and seat belt pre-tensioners, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate. The website quoted contains California information only and may not be accurate for other states. Dealer staff should be referred to their state for further information.
- If disposing of a seat belt with pre-tensioner which has not yet been operated, its seat belt pre-tensioner must be operated first before disposal (Refer to AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES ).
- When removing and installing the front passenger seat belt, be sure to carry out accuracy check of the occupant classification sensor after the seat has been installed in the vehicle (ON-VEHICLE SERVICE ).
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824:Vehicle Communication Interface(V.C.I.)
- MB991827:M.U.T.-III USB Cable
- MB991910:M.U.T.-III Main Harness A
