Inspection procedure 3: The SRS Warning Light does not Illuminate: Notes

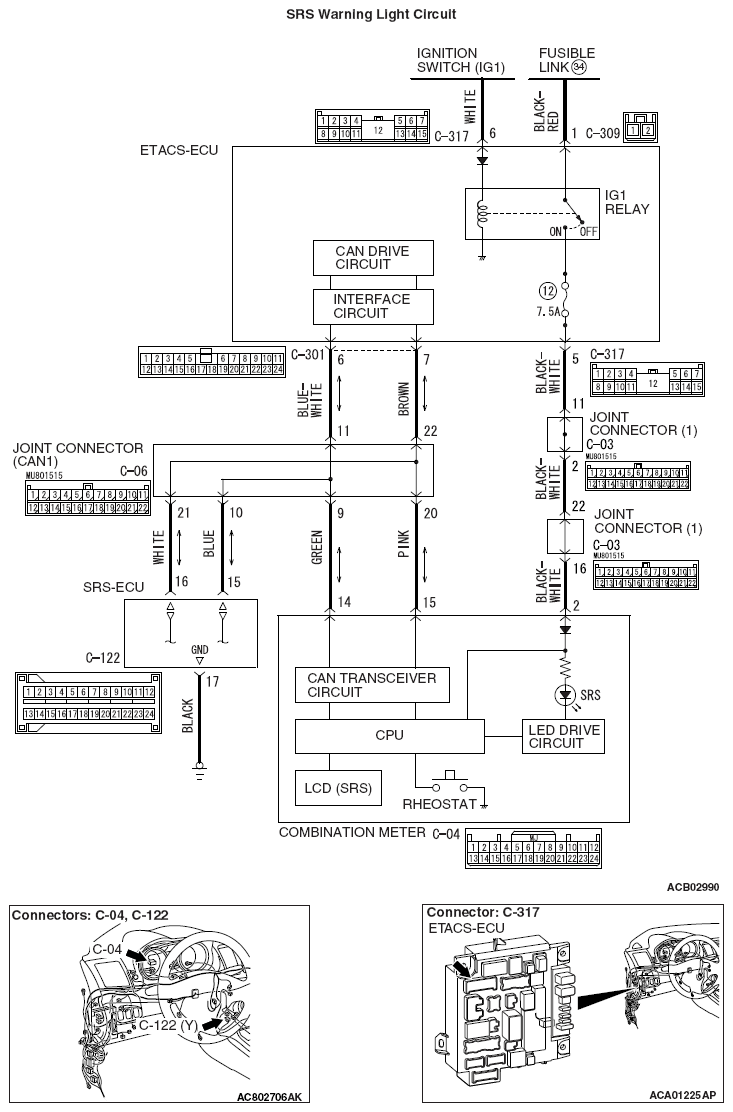

Fig 1: SRS Warning Light Circuit Diagram

G09629667

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
