DTC U1414: Defective Coding Data: Diagnosis

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicles Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
   1. Connect scan tool MB991958. Refer to "HOW TO CONNECT THE SCAN TOOL  ."
   2. Turn the ignition switch to the "ON" position.
   3. Diagnose the CAN bus line.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the CAN bus line found to be normal?

   • YES:  Go to Step 2.
   • NO:  Repair the CAN bus line (Refer to DIAGNOSIS ).

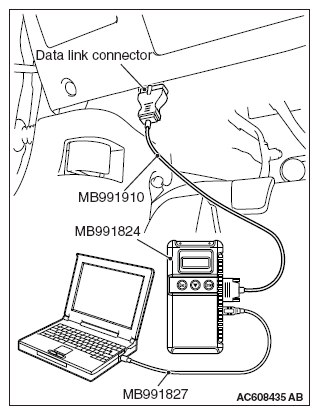

     Fig 1: Connecting Special Tool MB991910 To Data Link Connector

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Using scan tool MB991958, read the ETACS-ECU diagnostic trouble code

   Check if DTC Nos. U0331, B1761, B222C, B2206, or B2215 is stored in the ETACS-ECU.

   Q: Is the DTC stored?

   • YES:  Diagnose the ETACS-ECU.
   • NO:  Go to Step 3.
3. STEP 3. Recheck for diagnostic trouble code.

   Check again if the DTC is stored in the SRS-ECU.

   1. Erase the DTC.
   2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
   3. Check if DTC is stored.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the DTC stored?

   • YES:  Replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ).
   • NO:  There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS ).
