DTC U0175: Side Impact Sensor (RH) Communication Error: Notes

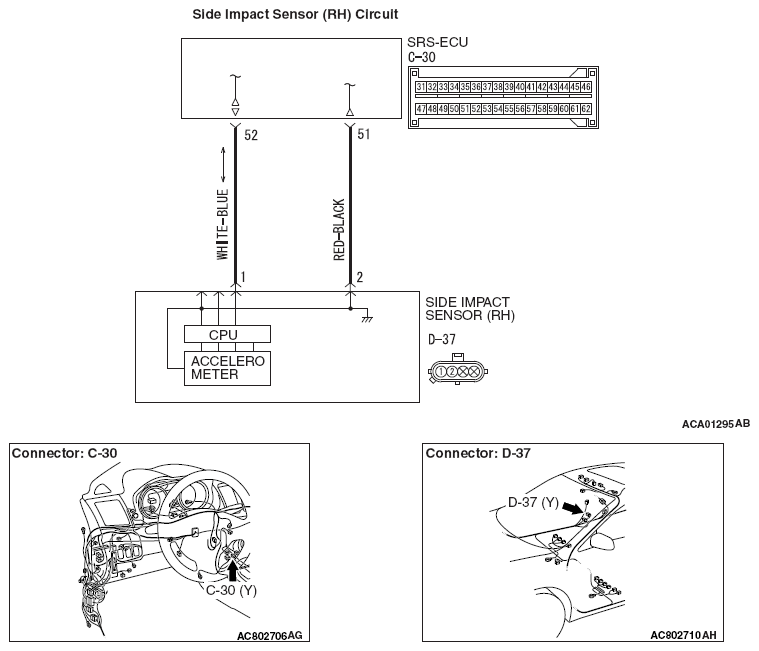

Fig 1: Side Impact Sensor (RH) Circuit Diagram
G09629612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC U0175 is set in the SRS-ECU, always diagnose the CAN main bus line.
