DTC U0170: Front Impact Sensor (LH) Communication Error: Notes

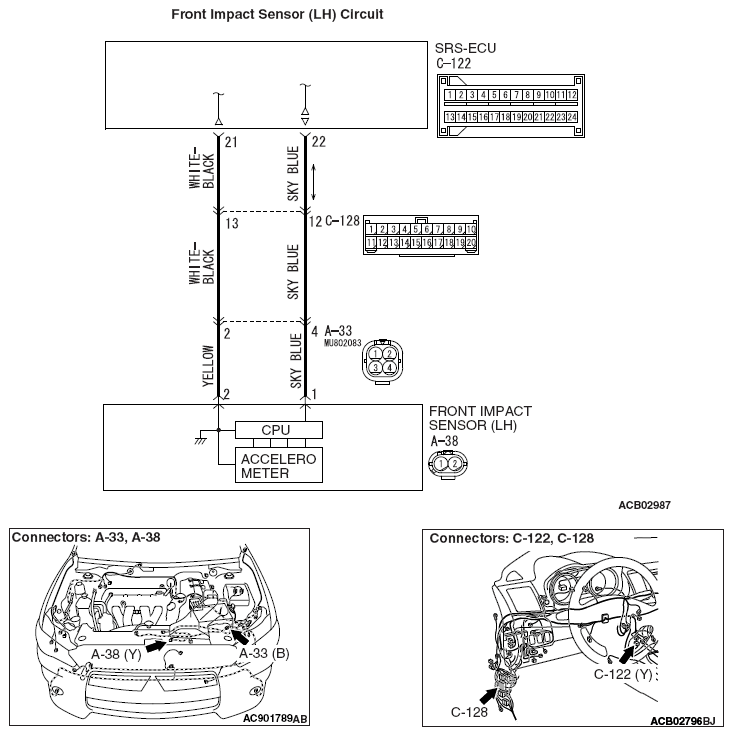

Fig 1: Front Impact Sensor (LH) Circuit Diagram
G09629606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC U0170 is set in the SRS-ECU, always diagnose the CAN main bus line.
