DTC B212C: Open Circuit to IG1 Power Supply (Fuse No. 12 Circuit); DTC B212D: Open Circuit to IG1 Power Supply (Fuse No. 18 Circuit): Notes

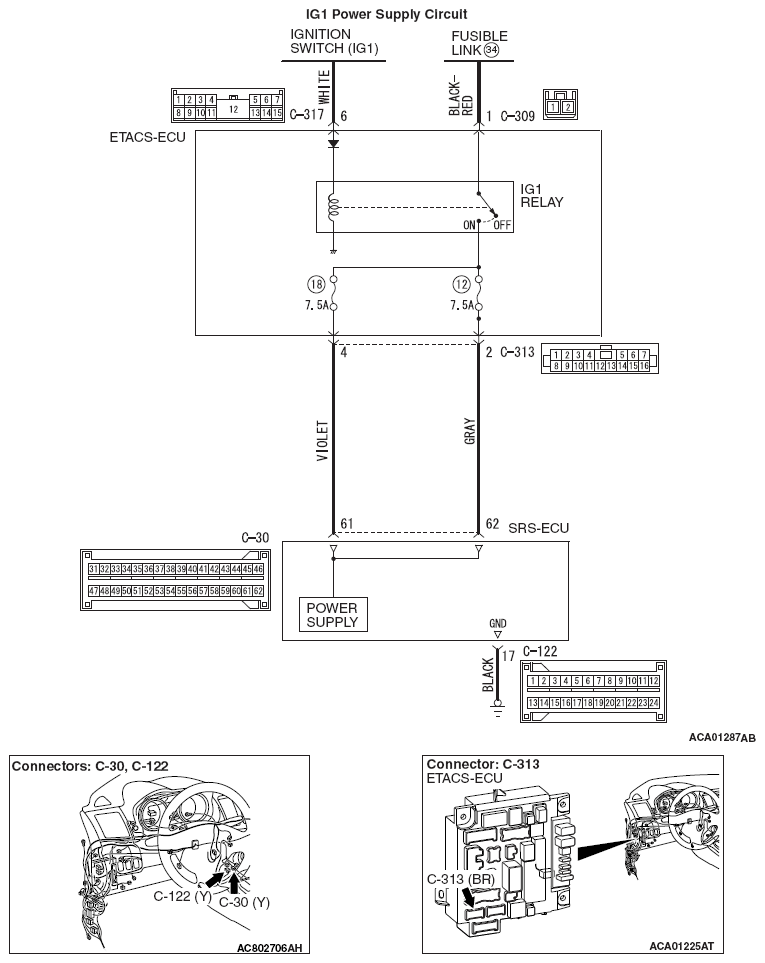

Fig 1: IG1 Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B212C (Fuse No. 12) or B212D (Fuse No. 18) is set in the SRS-ECU, always diagnose the CAN main bus lines.
