DTC B1C47: Front Seat belt Passenger's pre-tensioner (squib) system (shorted to squib circuit Ground): Notes

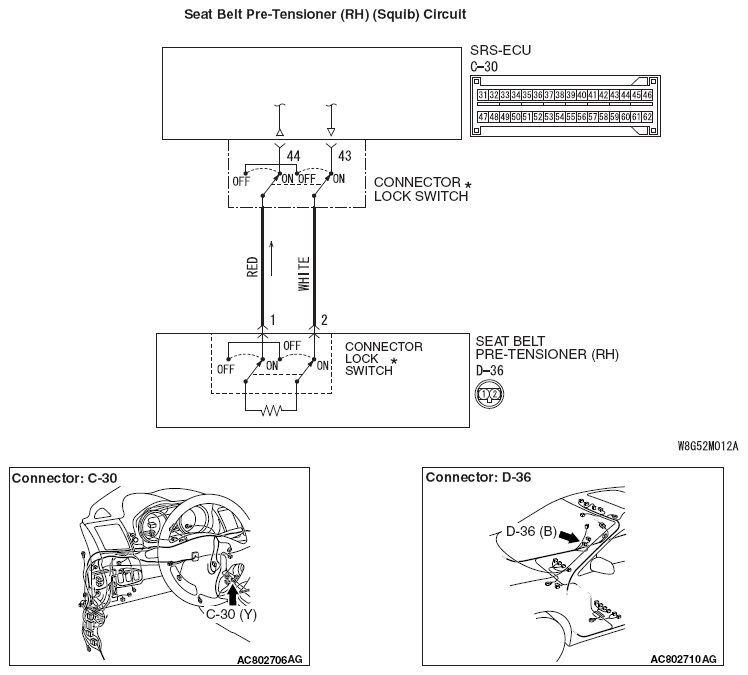

Fig 1: Seat Belt Pre-Tensioner (RH) (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1C47 is set in the SRS-ECU, always diagnose the CAN main bus line.
